Have you ever wondered how the internet stays so incredibly fast? Behind the walls of huge data centers, thousands of tiny glass fibers carry information every single second. These glass lines are called fiber optic cables. Sometimes, network engineers need to test these cables to ensure they work perfectly. That is exactly where an MTP loopback comes into play.
An MTP loopback is a tiny, clever device used by network testers. Think of it like a mirror for data. When a machine sends a light signal out, this handy little tool catches the light and bounces it right back to the same machine. This quick trick allows engineers to check if the network equipment is sending and receiving data without any errors. It is a simple, cost-effective way to find and fix network problems before they cause internet lag.
Technical Specifications and Hardware Overview

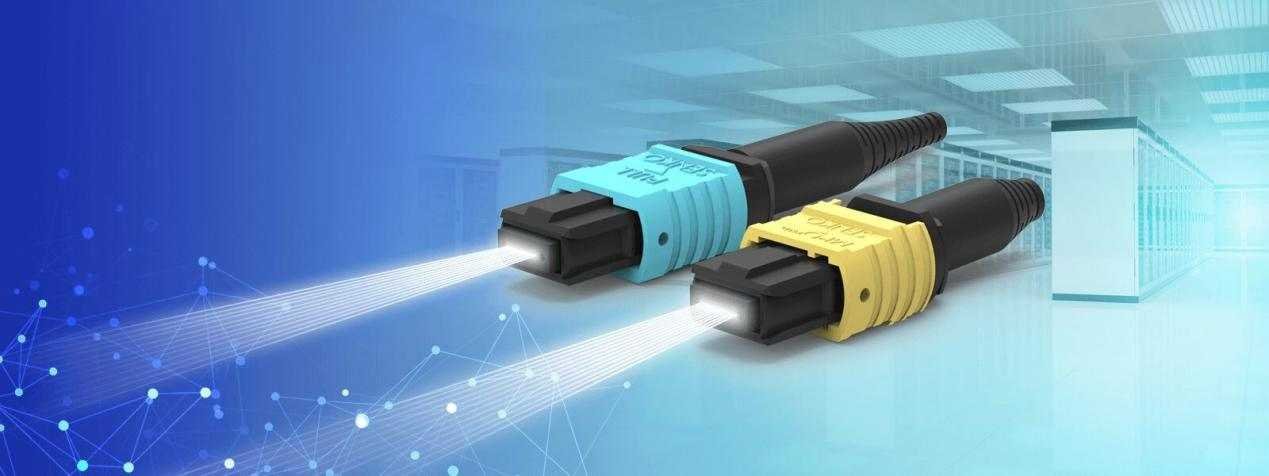

To understand this tool, we should look at its main parts. It features an MTP loopback connector on one end, which plugs directly into your network equipment. Inside the tiny plastic casing, high-quality optical fibers loop around safely. These loops route the light signal from the transmit side straight back to the receive side.
| Feature | Specification Details |
| Device Type | MTP Loopback Cable Assembly |
| Fiber Count Options | 8-Fiber, 12-Fiber, 16-Fiber, 24-Fiber |
| Fiber Modes Available | Singlemode (OS2) and Multimode (OM3, OM4, OM5) |
| Connector Gender Types | Female (without pins) or Male (with pins) |
| Common Polarity Styles | Type A (Straight) and Type B (Rollover) |
| Typical Insertion Loss | Standard (0.7 dB) or Elite Low Loss (0.35 dB) |
| Primary Material Use | Flame-retardant plastic chassis with ceramic ferrules |
How Does an MTP Loopback Tester Actually Work?
The way an MTP loopback tester works is actually quite easy to visualize. Imagine throwing a bouncy ball against a solid wall. If the ball bounces straight back into your hands, you know the path through the air is completely clear. If the ball does not come back, you know something blocked it along the way.
In a real fiber optic network, a transceiver sends out laser beams full of data. When you plug an MTP loopback into that transceiver, the laser light travels into the connector. It flows through the tiny loops of glass inside the casing. Then, it travels right back into the transceiver’s reading eye. If the machine reads the data perfectly, the engineer knows the hardware is healthy.
Choosing the Right Fiber Mode for Your Network
When picking out an MTP loopback multi-fiber device, you must choose the correct fiber mode. There are two main types available on the market today. The first type is singlemode, which usually has a yellow jacket. Singlemode uses a single, direct beam of laser light to send data over incredibly long distances.
The second type is multimode, which often comes in aqua or lime green colors. Multimode uses multiple light paths and works best for shorter distances inside a single building. If you plug a singlemode MTP loopback into a multimode machine, the light will scatter, and your test will fail completely. Always match your loopback tool to the exact type of cable your network uses.
Understanding Fiber Counts and the 12-Fiber MTP Loopback
Fiber optic setups use different amounts of glass strands based on how much data they need to carry. The most popular version used in data centers is the 12-fiber MTP loopback. This specific tool contains twelve distinct strands of glass bundled neatly inside one single connector housing.
A 12-fiber MTP loopback is perfect for testing standard 40G and 100G internet speeds. In these fast systems, four fibers might send data, four fibers receive data, and the middle four fibers sit empty. The loopback tool connects the sending strands directly to the receiving strands. This lets you test all twelve paths at the exact same moment with one single click.
The Growth and Power of the 24-Fiber MTP Loopback
As the world craves faster internet for video streaming and gaming, networks must grow stronger. This demand is why the 24-fiber MTP loopback is becoming so popular today. It packs twice as many glass strands into the exact same amount of physical space as older models.
Using a 24-fiber MTP loopback allows engineers to test ultra-high-speed 400G networks with total ease. It handles complex wiring patterns without requiring multiple separate test tools. I remember helping a local data center upgrade its main server racks last year. Using these 24-fiber tools saved our team hours of tedious work because we could test huge data lanes all at once.
Female Versus Male MTP Loopback Connectors Explained
When buying an MTP loopback module, you must pay close attention to the gender of the connector. This concept sounds a bit funny, but it is very important for hardware safety. Male connectors have two tiny metal guide pins sticking out of the front tip. Female connectors have two small holes drilled into the exact same spots.
An MTP loopback female connector plugs into a male port that already has guide pins inside it. If you try to force two male connectors together, the metal pins will smash into each other. This mistake can permanently crush and ruin the expensive glass fibers inside. Always peek inside your equipment port with a safe inspection scope before choosing your loopback tool.
The Critical Importance of Testing Insertion Loss
Every time light passes through a fiber connector, a tiny amount of that light gets lost along the way. This lost light is called insertion loss. When you use an MTP loopback, you want the insertion loss to be as low as possible. If a loopback tool loses too much light, your test results will be incorrect.
High-quality loopback tools use premium parts to keep insertion loss very low. Standard models usually lose about 0.7 decibels of light power. High-end elite models only lose about 0.35 decibels of light. Choosing a low-loss MTP loopback ensures your machine tests the actual network quality rather than struggling with a poor testing tool.
Real-World Use Cases for the MTP Loopback
Where do people actually use an MTP loopback in daily life? The most common place is inside massive cloud data centers managed by giant tech companies. These facilities hold thousands of computers that require constant, unbroken internet connections to serve millions of users.
Engineers also use an MTP loopback during emergency troubleshooting sessions. If an entire section of a building suddenly loses its connection, the team plugs a loopback into the main switch. If the switch passes the loopback test, the engineers know the switch is fine, and the broken wire is somewhere out in the walls. It saves people from guessing where the true problem lies.
Best Practices for Cleaning and Maintaining Your Loopback
Fiber optic strands are incredibly small. A single speck of household dust can completely block a laser beam and ruin your network test. Because of this danger, you must clean your MTP loopback every single time you use it.
Pro Tip: Never touch the front face of a fiber connector with your bare fingers. The natural oils on your skin will leave a smudge that destroys light signals.
Always use a specialized fiber optic cleaning pen designed for MTP connectors. Simply push the tool onto the connector until you hear a loud click. The tool spins a fresh strip of clean cloth across the glass face, wiping away dust and oils safely. Store your loopback tools with their plastic dust caps firmly attached whenever you are not using them.
Summary and Final Thoughts on Network Optimization
Keeping a modern data network running fast requires the right troubleshooting tools. The humble MTP loopback is a small, affordable device that saves network administrators a massive amount of time and money. It allows teams to test fast fiber lines, verify expensive transceivers, and find hidden system bugs quickly.
By understanding fiber counts, connector genders, and proper cleaning habits, you can keep your hardware in perfect shape. Whether you run a massive data center or manage a growing office network, having a few reliable loopback tools in your kit is a smart move. Take care of your fiber tools, and they will keep your data moving at the speed of light.
Frequently Asked Questions
What is the main purpose of an MTP loopback?
The main purpose of an MTP loopback is to test the sending and receiving abilities of fiber optic network equipment. It loops the light signal back to the source to check for system errors.
Can I use a singlemode MTP loopback on a multimode network?
No, you cannot use a singlemode tool on a multimode network. The glass cores are different sizes, which causes the light to scatter and makes your test fail completely.
What is the difference between a male and female MTP loopback?
A male MTP loopback has two small metal guide pins on the front tip. A female MTP loopback has matching holes designed to receive those guide pins safely without breaking the glass.
How many fibers are inside a standard MTP loopback connector?
The most common models contain 12 fibers or 24 fibers. However, specialized versions with 8 fibers or 16 fibers are also available for specific high-speed network systems.
How often should I clean my MTP loopback tester?
You should clean your MTP loopback tester every single time before you plug it into a machine. Even a microscopic speck of dust can block the laser light and ruin your test results.
What does low insertion loss mean for an MTP loopback?
Low insertion loss means very little light is wasted inside the tool. A lower number means the tool is highly accurate and will not cause false error readings during your network tests.
